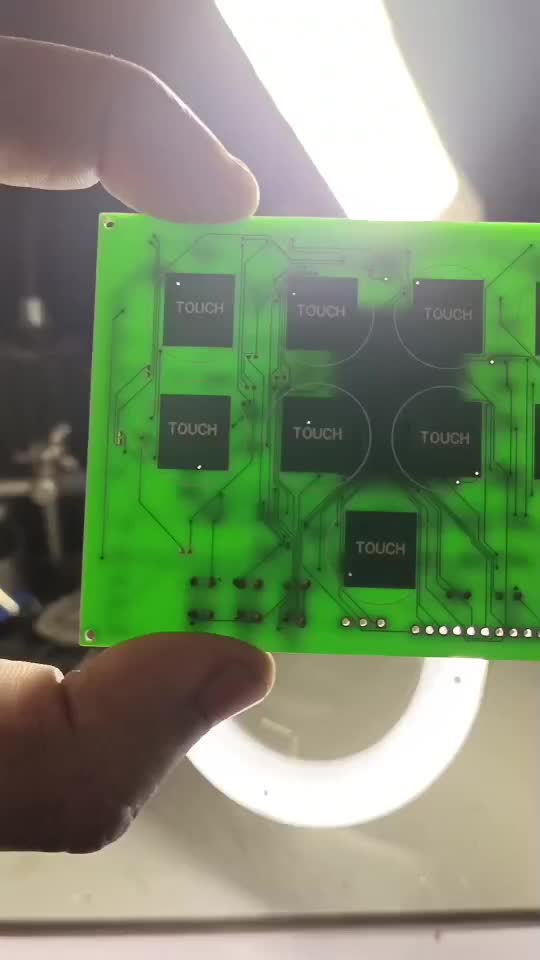

eu vou fazer engenharia reversa do seu PCB e recuperar um esquemático editável

Algumas informações foram traduzidas automaticamente.
4,9
4,9

Paquistão

Eu falo Urdu, Inglês, Panjabi, Hindi

128 pedidos finalizados

Engenheiro de Design de PCB, firmware embarcado e IoT

Sou engenheiro elétrico e de sistemas embarcados. eu projeto PCBs no KiCad e EasyEDA Pro, desenvolvo e depuro firmware de ESP32 e STM32, e crio apps Flutter que se conectam ao hardware via BLE ou Wi‑F...

Nível 1

Atendeu a determinados critérios de desempenho e demonstra forte potencial no marketplace.

Sobre este Serviço
Tenho uma PCB existente com arquivos de design ausentes? Eu sigo conexões visíveis e identifico componentes para que você possa entender, reparar ou atualizar o circuito. Trabalho a partir de fotos claras da placa, arquivos de fabricação existentes ou uma amostra da placa quando necessário. Escolha uma revisão de um bloco de circuito, recuperação de um esquema editável ou recuperação de esquema com redesign. Registro conexões incertas e sinalizo peças que precisam de verificação. Envie fotos claras de ambos os lados, Close-ups das marcações dos chips, dimensões da placa e o que você precisa recuperar. Vou confirmar se as fotos são suficientes ou se é necessária uma amostra ou medições de continuidade. Confirme, por favor, que você está autorizado a reproduzir o design.

Especialização:

Design de circuito

•

Representações esquemáticas

Formato de arquivo:

Gerber

•

Passo

•

SCH

•

PDF

•

Outros

Software:

Designer Altium

•

Eagle CAD

•

EasyEDA

•

Fusion 360

•

KiCad

Interface:

HDMI

•

MIPI DSI/CSI

•

I2S

•

UART

•

USB

•

SPI

•

I2C

•

SDIO

•

PCIe

•

Wi-Fi

•

BLE

•

BT

Clientes com quem já trabalhei
Pactive Motion

Pactive Motion

I worked directly with Pactive Motion on the RedXpider motor control development project, a new product initiative associated with the company. My work included Review and Analysis, Custom motor driver electronics development, Schematic and PCB design and manufacturing file preparation.

mai. de 2026-mai. de 2026

Life is Live

Life is Live

Designed and developed the Lidget wearable MVP for LifeIsLive (Founder - Jose) from prototype concept to a tested working system. Built two ESP32-S3 devices with BLE peer communication, embedded firmware, custom enclosure, assembly and testing. Implemented ConsentBuzzer, SilentSupport and PullAlert, with buzzer, vibration, LED feedback, reed switch detection and event logging.

jun. de 2026-jul. de 2026

Meu portfólio
