I will measure and draw for building permit in UK
Clareth A.
Level 1
Sobre este Serviço

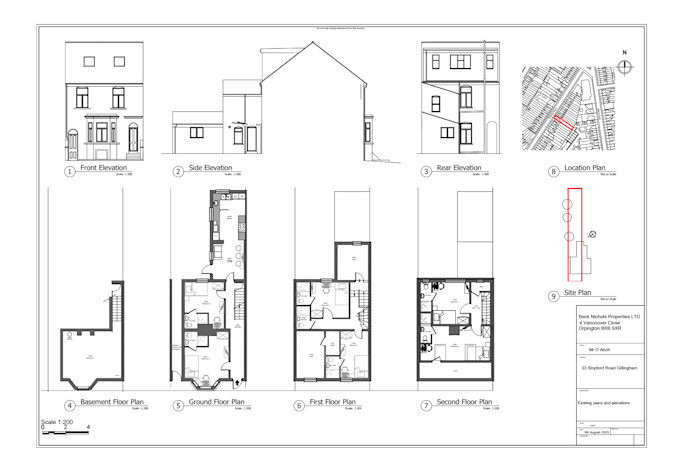

Measured Survey & Drawings Package for Building Permit (UK-London)
Survey Outputs (Existing Conditions)
- Floor Plans (Existing)
- To scale (usually 1:50 or 1:100).
- Showing all rooms, walls, doors, windows, stairs, sanitary fittings.
- Room dimensions + gross internal floor area.
- Elevations (Existing)
- All external sides (front, rear, sides).
- Heights, window/door positions, roof slopes.
- Sections (if needed)
- Vertical slices showing floor-to-ceiling heights, roof pitch, and key structural details.
- Site Plan / Block Plan
- Location within boundary, garden space, driveways.
- Orientation with north point.
- Based on OS Map (scale 1:1250 or 1:500).
3. Proposed Design Drawings (for Permit Application)
- Proposed Floor Plans (with alterations/extensions marked).
- Proposed Elevations (highlighting changes vs existing).
- Sections (Proposed) (for lofts, extensions, structural changes).
Preferência de verificação de serviço e estilo de entrega
A Fiverr não seleciona freelancers nesta categoria. Favor verificar os requisitos de qualificação com o freelancer antes de realizar o pedido, incluindo as preferências em relação ao uso de ferramentas de IA.
Conheça mais sobre Clareth A.
Clareth A.
Level 1
- A partir deFilipinas
- Membro desdejun. de 2020
- Responde em aprox.:1 hora
- Última entrega2 meses
Idiomas
Inglês
I am a LICENSED INTERIOR DESIGNER/CAD SPECIALIST in the Philippines and graduated with a Latin Honor. I am specialized in residential design, using AutoCAD, SketchUp, InteriCAD, Enscape, ArcSite, and Vray to turn my imagination into reality. I am also an expert in 2D drawings like Floor Plans, Elevations, and other complex plans.
